Technical Specifications
Microphone Input
tested from analog input to Dante output @ 48kHz sampling rate
Input Configuration:
Mono, Balanced XLR, 3kΩ input impedance
Input Frequency Response:
20Hz – 20kHz +/-0.85dB, 30Hz – 20kHz +/-0.32dB
Input THD+N:
0.003% @ 150mV input, +24dB gain setting, 1kHz, A-weighted
Input IMD:
0.01% @ 150mV input, 60Hz & 7kHz (SMPTE/DIN)
Input X-TALK:
-106dB @ 150mV into Instrument Input, 1kHz, A-weighted
Input Sensitivity (Max Gain):
-36dBu input yields 0 dBFS full-scale output
Input Sensitivity (Min Gain):
+13.8dBu input yields 0 dBFS full-scale output
Instrument Input
tested from analog input to Dante output @ 48kHz sampling rate
Input Configuration:
1/4" Tip-Sleeve, 1MΩ High Impedance, Unbalanced
Input Frequency Response:
20Hz – 20kHz +/-0.76dB, 30Hz – 20kHz +/-0.33dB
Input THD+N:
0.003% @ 150mV input, +12dB gain setting, 1kHz, A-weighted
Input IMD:
0.006% @ 150mV input, 60Hz & 7kHz (SMPTE/DIN)
Input X-TALK:
-82dB @ 150mV into Microphone Input, 1kHz, A-weighted
Input Sensitivity (Max Gain):
-33.5dBu input yields 0 dBFS full-scale output
Input Sensitivity (Min Gain):
-1dBu input yields 0 dBFS full-scale output
Line Inputs 1 & 2
tested from analog input to Dante output @ 48kHz sampling rate
Input Configuration:
1/4" Tip-Ring-Sleeve, Balanced, 20K ohms input impedance
Input Frequency Response:
20Hz – 20kHz +/-0.74dB, 30Hz – 20kHz +/-0.32dB
Input THD+N:
0.005% @ 1V input, 1kHz, A-weighted
Input IMD:
0.008% @ 1V input, 60Hz & 7kHz (SMPTE/DIN)
Input X-TALK:
-99dB @ 1V into adjacent line input, 1kHz, A-weighted
Input Sensitivity:
+18dBu (fixed gain)
Input Propagation Delay
Analog Input to Dante:
0.542ms @ 48 kHz
0.396ms @ 96 kHz
0.318ms @ 192 kHz
Analog Input to Analog Output:
0.662ms @ 48 kHz
0.349ms @ 96 kHz
0.182ms @ 192 kHz

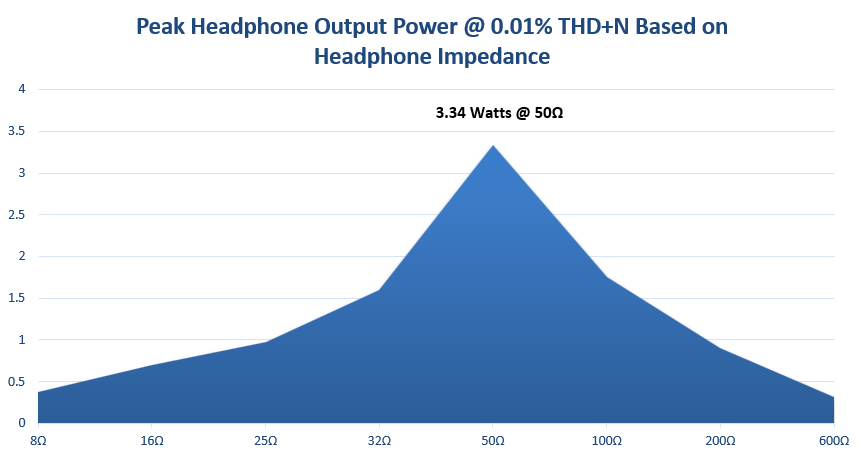

Headphone Power
Mixer Headphone Power (Per Channel):
Inter Modulation Distortion:
Typically less than 0.08% (SMPTE/DIN)
Analog Outputs
Frequency Response:
20Hz – 20kHz +/-0.15dB
THD+N:
0.005% @ +18 dBu, 1kHz, A-weighted
IMD:
0.009% @ +18 dBu, 60Hz & 7kHz (SMPTE/DIN)
X-TALK:
-94dB @ +18dBu, 1kHz, A-weighted
Noise, A-Weighted:
-92 dBu (line output & headphone out: @ 48 kHz, master volume at 100%, no inputs)
Dynamic Range:
112.6 dBu (headphone output)
114.3 dBu (line output)
SNR:
100.5dBu (headphone output)
105dBu (line output)
Propagation Delay:
Dante to Analog Output:
0.792ms @ 48 kHz
0.563ms @ 96 kHz
0.438ms @ 192 kHz
Physical
Size:
9.5" H x 5.95" W x 2.71" D (241 mm H x 151 mm W x 69 mm D)
Unit Weight:
1.6 lb. (0.72 kg)
Mounting:
Standard mic stand (5/8" 27 threads per inch) or desk mounted
Power
Power Requirements:
Power over Ethernet (PoE+) 36–52 volts DC, 15 Watts max provided by Hear Technologies PRONET or equivalent network switch with PoE+ capability
